Inflatable constant air arch
Inflatable constant air arch
From £1,167.64 Excl. VAT
£1,167.64 Excl. VAT
*for order placed with the design approved by 3pm same day

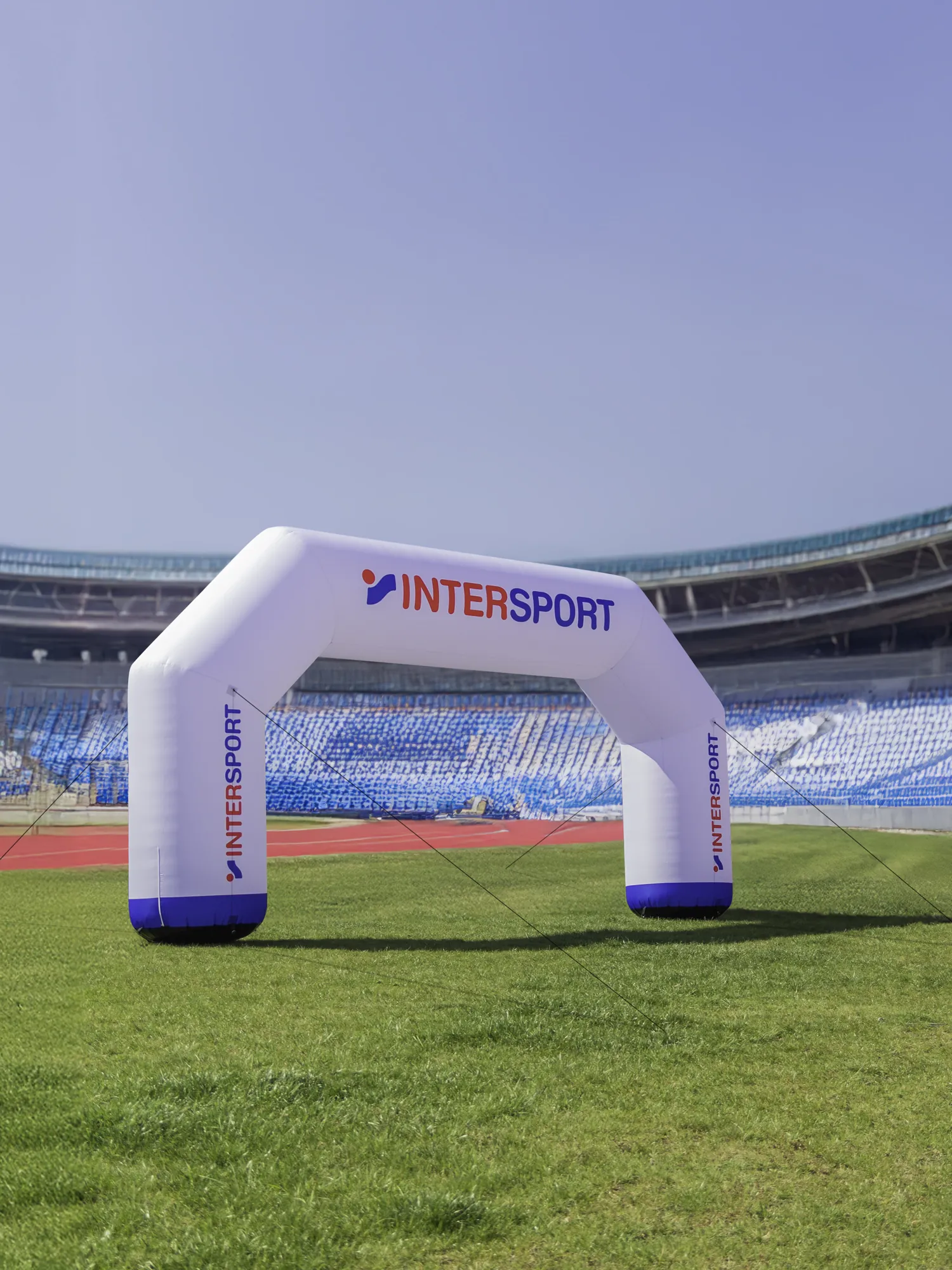

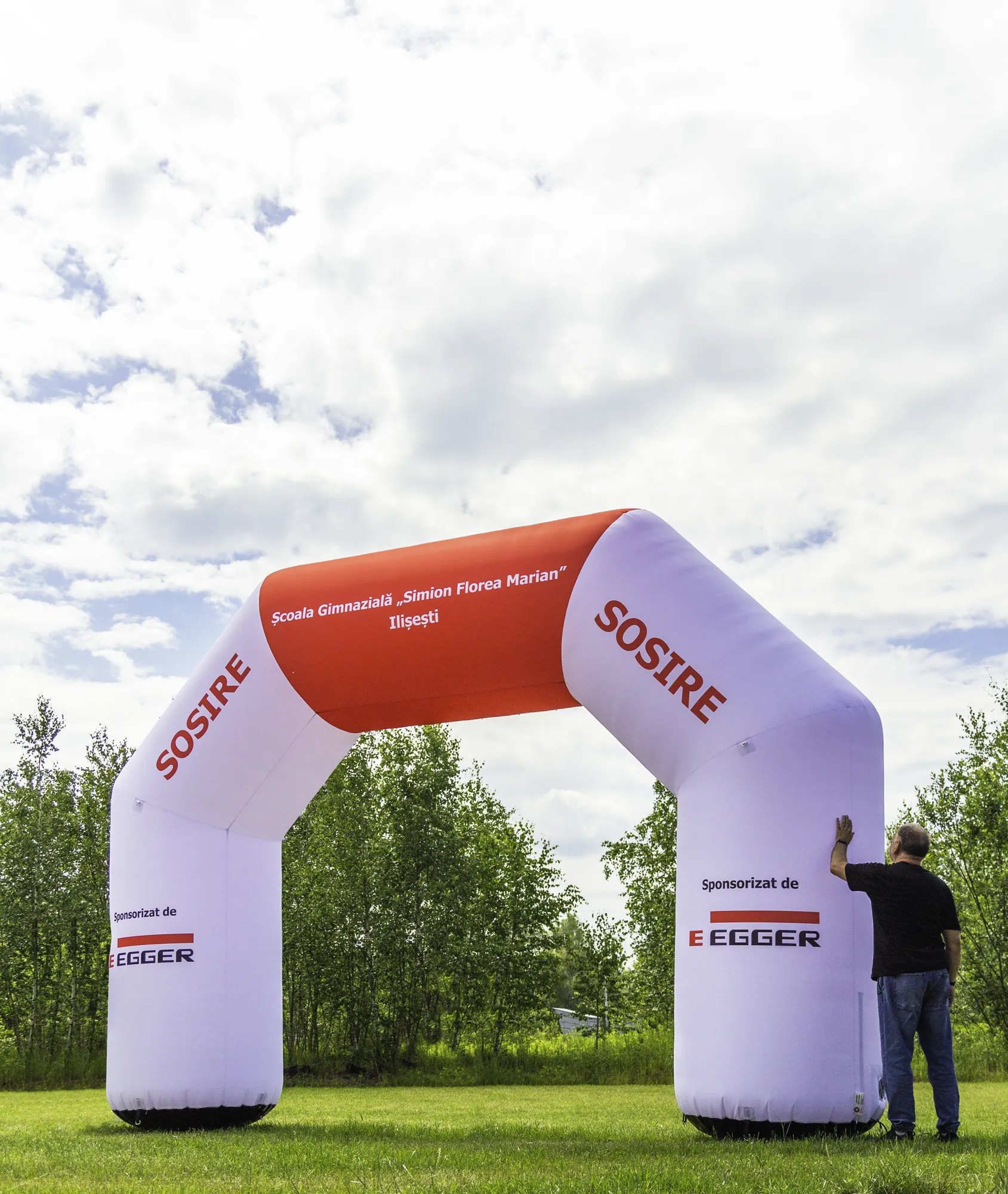

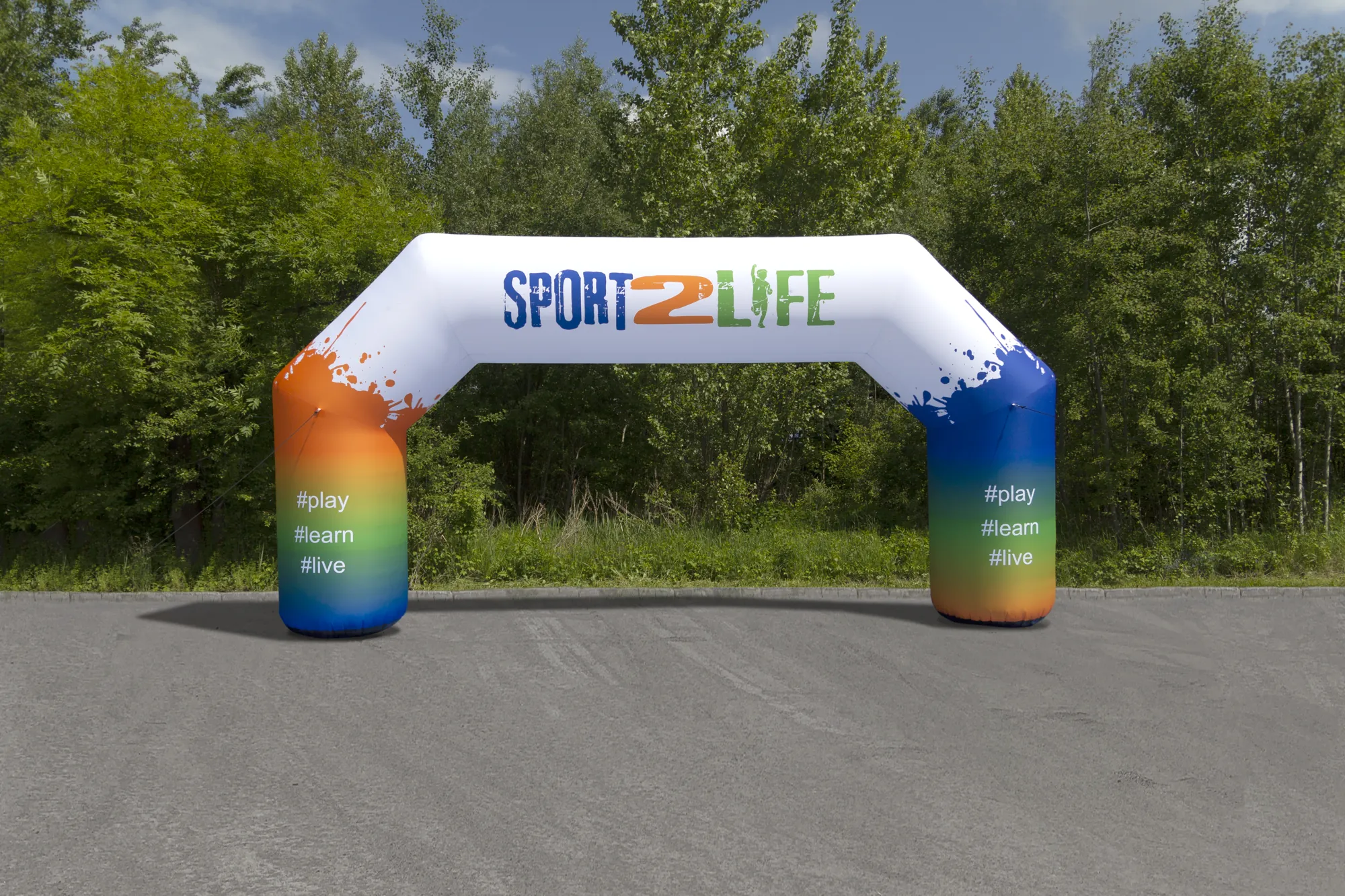

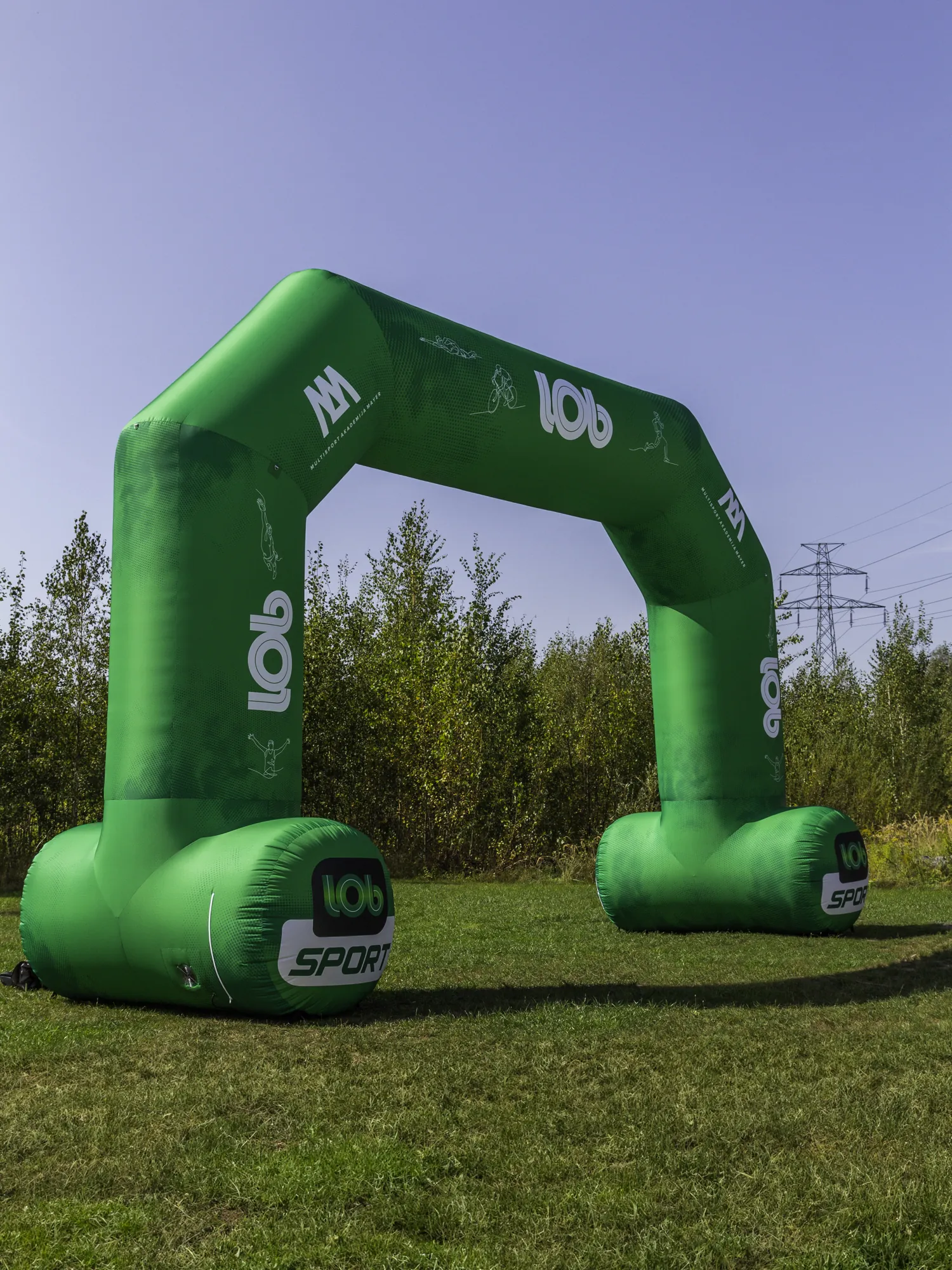

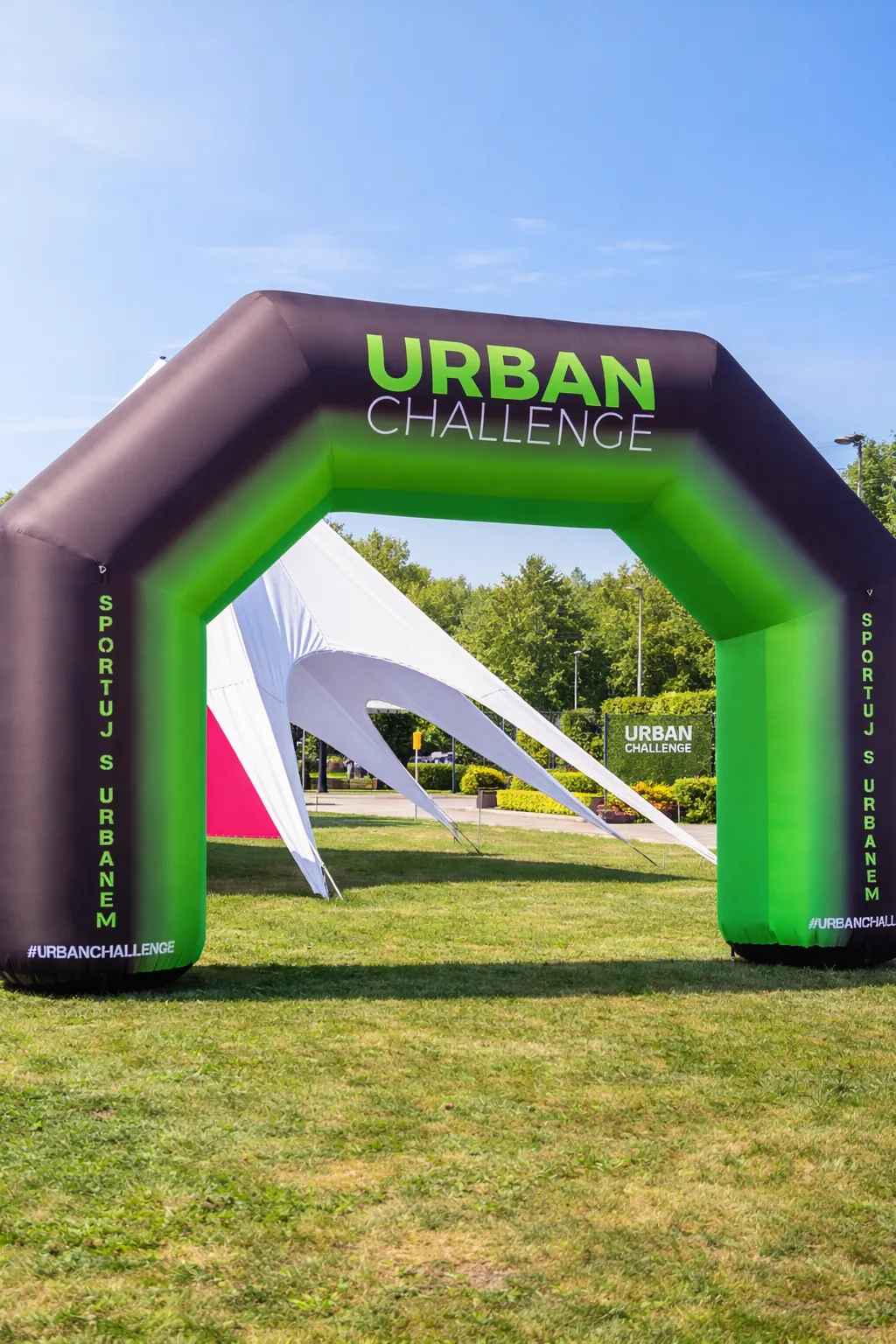

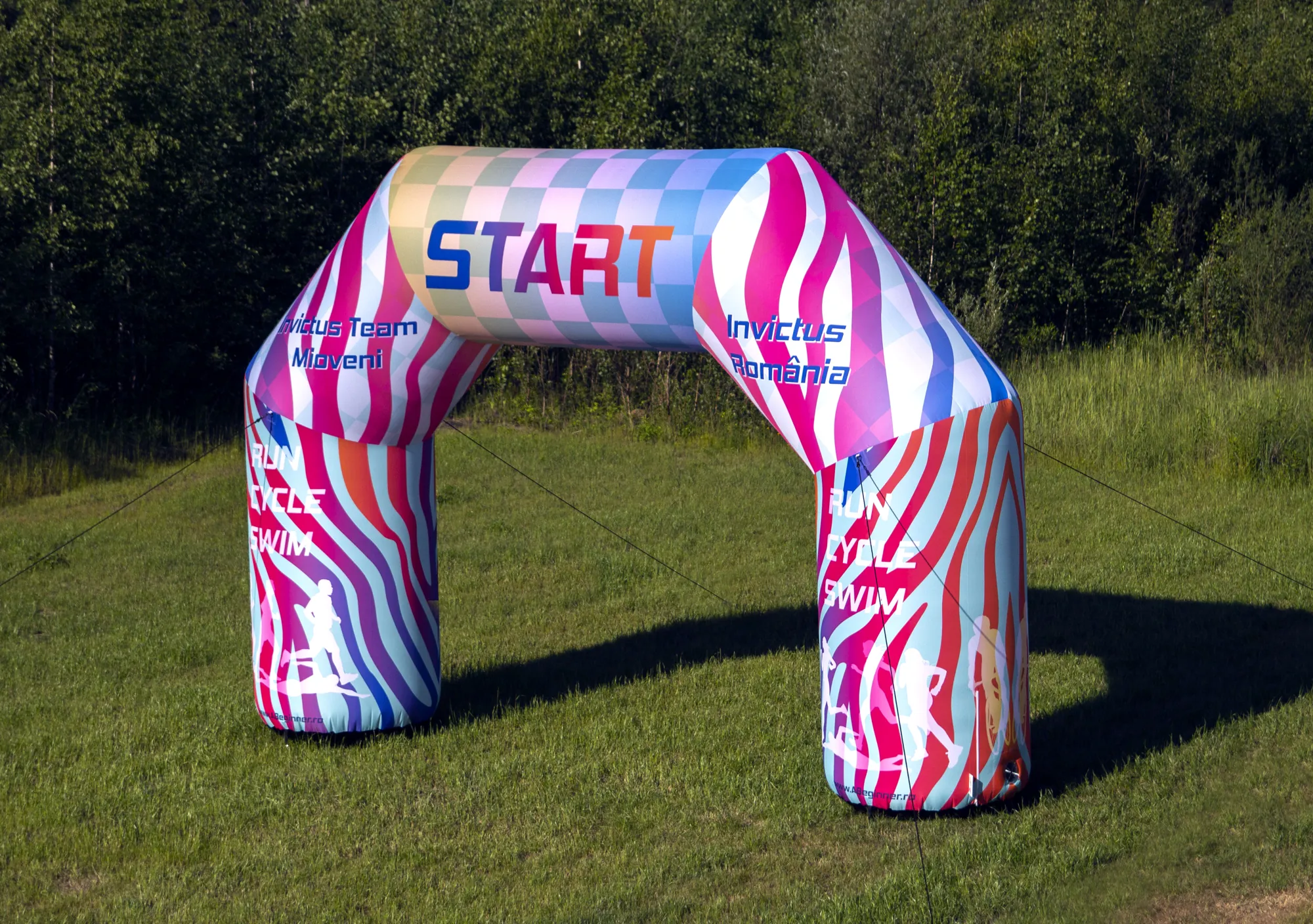

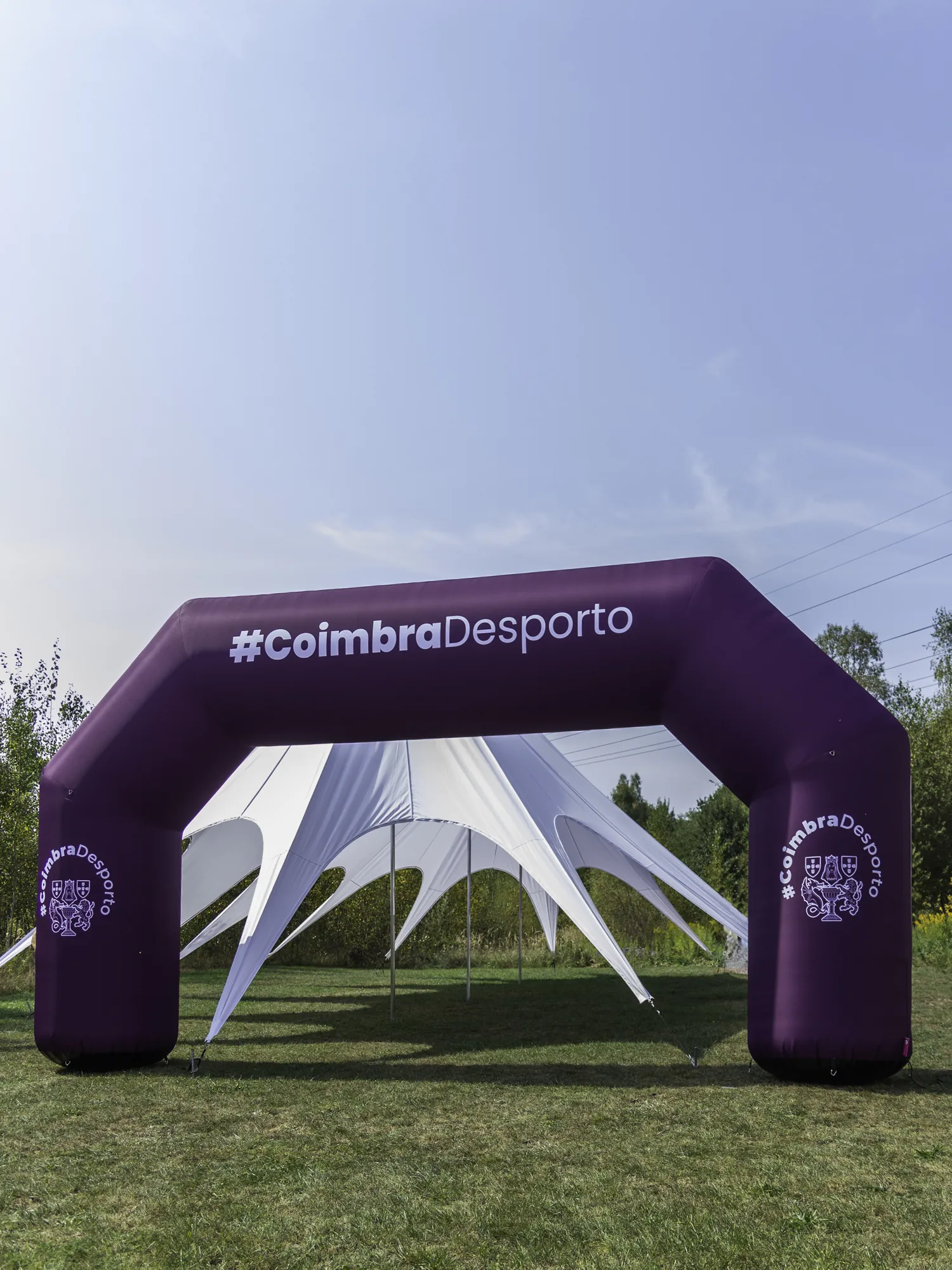

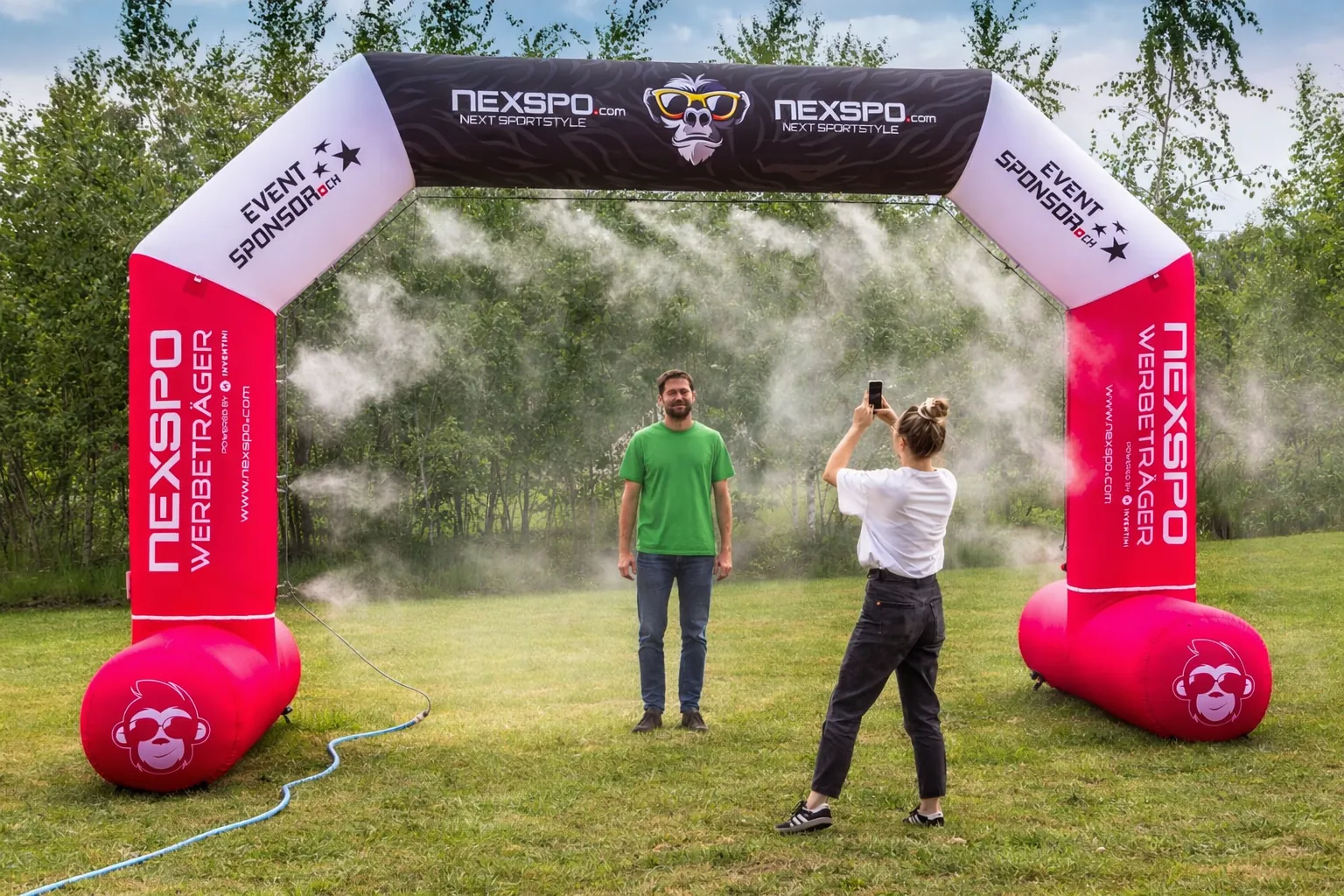

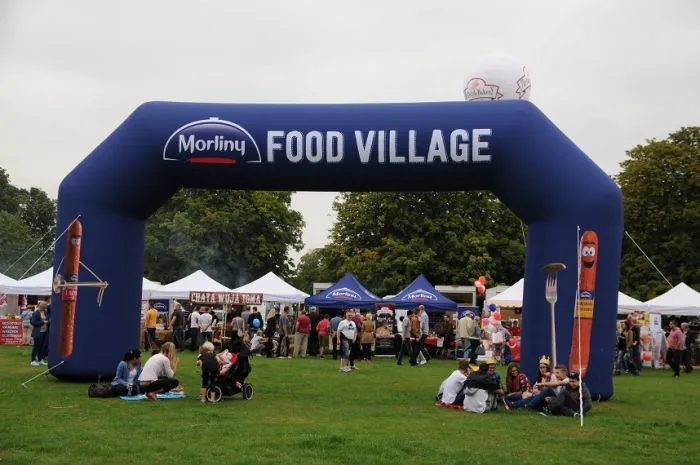

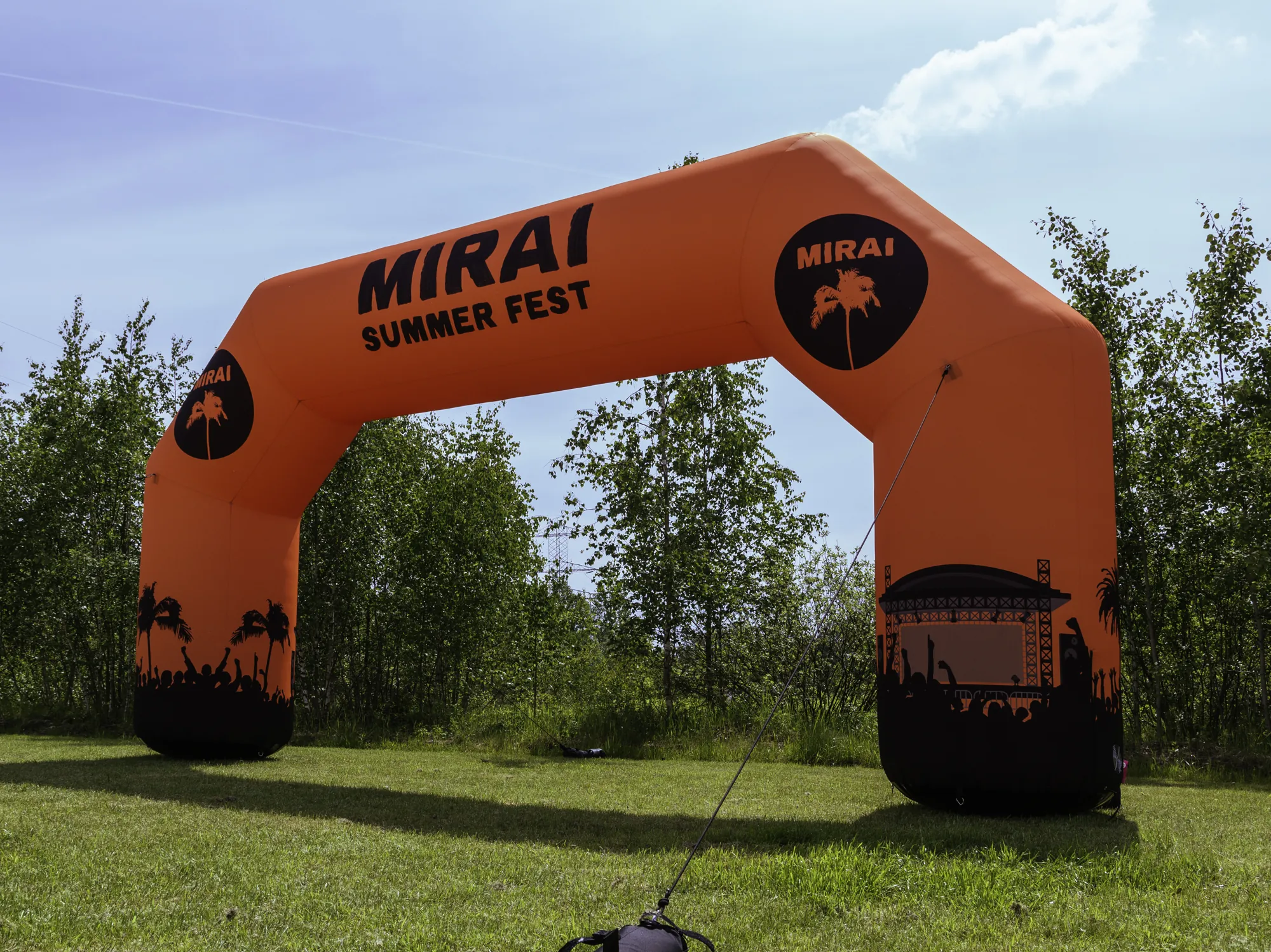

This constant-air advertising arch creates a branded marker for event entrances, race starts and finish zones. Choose from three sizes and customise the display with dye-sublimation printing or a replaceable banner.
Key features
- Three external sizes: 6 x 4 m, 8 x 4 m and 11.4 x 5.7 m
- Custom dye-sublimation printing for branded event displays
- Replaceable Velcro-mounted banner available as an option
- Built-in fan provides a continuous air supply during use
- Internal clearance options range from 3.4 x 2.7 m to 8 x 4 m
- Setup can be completed within 30 minutes
Materials & build
The cover uses polyester fabric, with impregnated polyester specified at approximately 235 g/m². The fan intake is protected by metal mesh.
Branding & visibility
Custom dye-sublimation printing is available for branded artwork. A replaceable Velcro-mounted banner is also available. Graphic design service is available.
Use cases & who it’s for

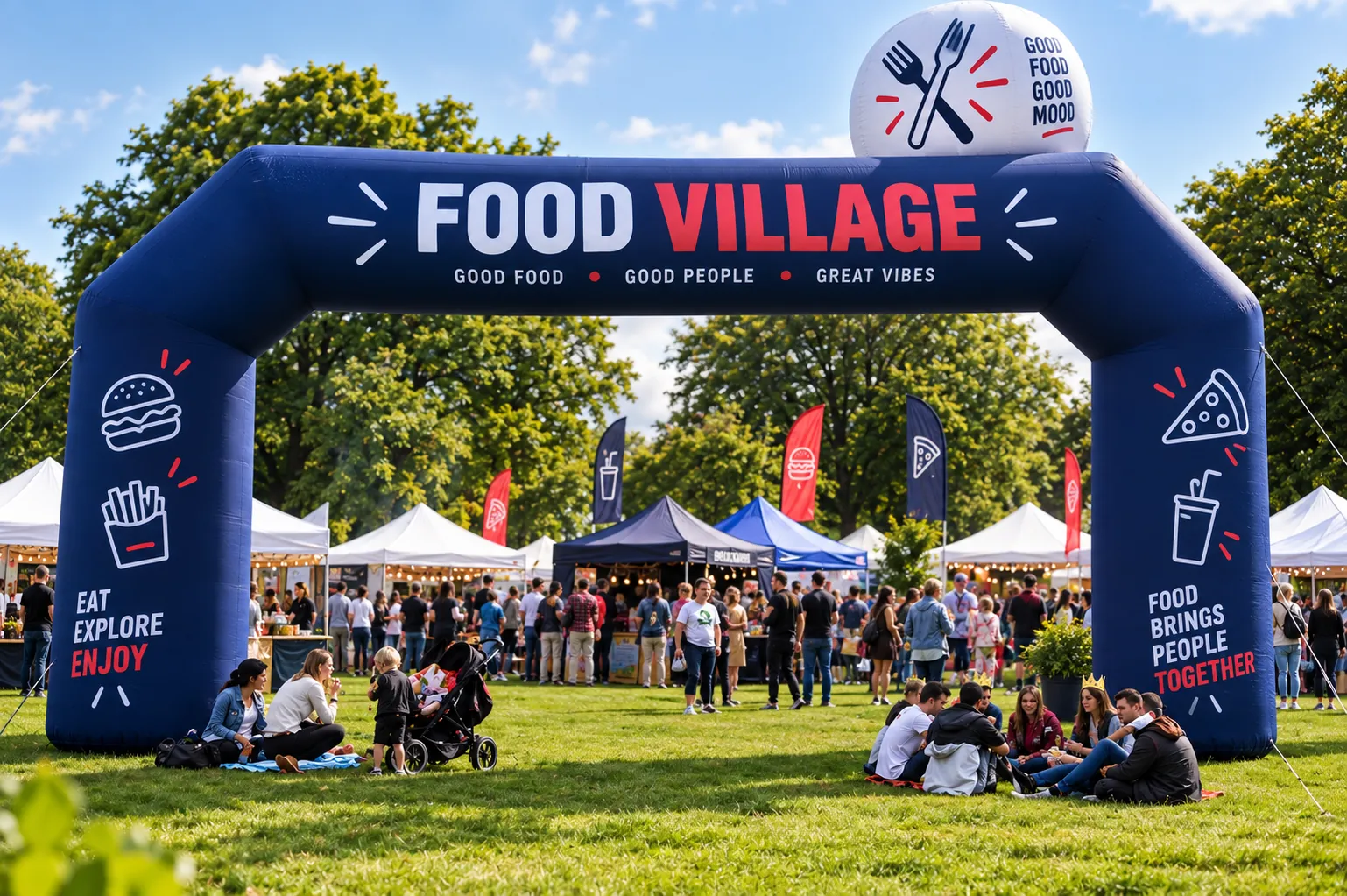

Supported uses include sports events, running races, cycling events, car races, ceremonial marches and closed events. The arch can mark event entrances, start zones and finish zones.
Setup, handling & transport
Installation must be completed by a competent person on a flat, stable surface, with the arch securely anchored and the guy ropes tensioned evenly. The built-in fan requires a continuous 230V AC / 50Hz supply protected by an RCD and must be positioned away from public access. Do not use the arch above 38 km/h or in strong winds, heavy rain, storms or hailstorms; monitor conditions and dismantle it if the wind increases. Carry bags are included for transport; clean the arch with a damp cloth, dry it completely and store it in a dry environment.
What’s included & options
Included equipment comprises the polyester cover with built-in fan, anchoring set, ropes, hammer and carry bags; the fan is rated for 230V. Available accessories include a replaceable Velcro-mounted banner, sprinkler system, internal LED lighting, 15 kg cast iron weight, 30 kg sand weight, 30 l water weight and power generator. Covered by a standard warranty (details available in the warranty terms).
Q&A
Which arch sizes are available?
The available external sizes are 6 x 4 m, 8 x 4 m and 11.4 x 5.7 m. Their respective internal clearances are 3.4 x 2.7 m, 5.4 x 2.7 m and 8 x 4 m.
Can the arch be custom printed?
Yes. Custom dye-sublimation printing is available, and a replaceable Velcro-mounted banner can also be selected.
Does the fan need to run continuously?
Yes. The built-in fan requires a continuous 230V AC / 50Hz power supply during operation, protected by an RCD.
How long does setup take?
Setup can be completed within 30 minutes and must be carried out by a competent person on a flat, stable surface.
How should the arch be cleaned and stored?
Clean it with a damp cloth only, without detergents or pressure washers. Allow it to dry completely, inspect it for damage and store it in a dry environment.
Next steps
Select your preferred arch size and custom-print option, then place your order.
Specification
| Product type | Constant-air inflatable advertising arch |
|---|---|
| Inflation method | Continuous air supply via built-in fan |
| Material | Polyester fabric |
| Fabric specification | Impregnated polyester, approximately 235 g/m² |
| Printing | Custom dye-sublimation print |
| Setup time | Within 30 minutes |
| Power supply | 230V AC / 50Hz |
| Electrical protection | RCD-protected supply required |
| Maximum wind speed | 38 km/h (Beaufort scale 5 – fresh breeze) |
| Fan intake protection | Metal mesh |
| Anchoring methods | Ground stakes, guy ropes, twisted ground anchors or weights on hard ground |
| Compliance reference | Low Voltage Directive (LVD) 2014/35/EU |
| Compliance reference | Machinery Directive 2006/42/EC |
| Compliance reference | Electromagnetic Compatibility Directive (EMC) 2014/30/EU |
| Standard | EN ISO 12100 – Risk assessment |
| Standard | EN 60335-1 – Electrical safety |
Variants
| Size | External dimensions | Internal clearance | Leg diameter | Transport sizes | Weight |
|---|---|---|---|---|---|
| 6 x 4 m | 6 x 4 m | 3.4 x 2.7 m | 1.3 m | 90 x 50 x 45 cm; 50 x 25 x 20 cm | 22 kg |
| 8 x 4 m | 8 x 4 m | 5.4 x 2.7 m | 1.3 m | 90 x 50 x 45 cm; 50 x 25 x 20 cm | 25 kg |
| 11.4 x 5.7 m | 11.4 x 5.7 m | 8 x 4 m | 1.7 m | 140 x 70 x 50 cm; 50 x 25 x 20 cm | 32 kg |
